EBMX XLB-60 Race Motor for Light Bee

EBMX XLB-60 Race Motor – The Fastest, Most Powerful Motor on the Market

Unlock unparalleled speed and power with the EBMX XLB-60 Race Motor. Specifically designed for high-performance applications, this motor is built for racing enthusiasts and extreme riders who demand the best. Whether you're hitting the trails, tackling MX tracks, or pushing the limits on the drag strip, the XLB-60 Race delivers insane RPMs, explosive torque, and a screaming 105kv wind for ultimate performance.

Key Features:

• Race-Ready Performance: Rev up to an astonishing 13,000 RPM with smooth and responsive power delivery. Perfect for high-speed racing and extreme off-roading.

• Custom Rotor Design: The EBMX rotor design offers a widened torque band for consistent pulling force, making this motor capable of handling extreme conditions.

• Enhanced Stability: With encoder sensors providing precise rotor position tracking, experience superior low-end torque and a smoother powerband compared to traditional hall sensors.

• Engineered for Heat: Rated for 180°C with U42H magnets and a 1mm rotor air gap, ensuring that the motor performs reliably in high-temperature conditions.

• Waterproof & Durable: Rated IP67, ensuring protection against water and dust, so you can ride in the harshest conditions without worry.

• Custom Tuning: Designed to work with the EBMX X-9000 controller, but also compatible with other controllers (custom tuning required).

Motor Specifications:

• Peak Power: 35,000W

• Rated Power (Air-Cooled): 13,600W (Continuous run for 28 minutes)

• Rated Power (Water-Cooled): 26,000W (Continuous run for 4 minutes 30 seconds)

• Max Torque: 52Nm

• Max Rotor RPM: 13,000 RPM

• Motor Configuration: 10 Poles, 12 Slots

• Winding Type: Dual Y Parallel Connection

• Kv Value: 95Kv

• Max Phase Current: 900A

• Rated Phase Current: 500A (28Nm)

• Voltage Range: 48V - 104V

• Waterproofing: IP67

• Colour Options: Black, Red, Blue, Gold, Purple

• Weight: 11.2kg

• Warranty: 2 years

Important Notes:

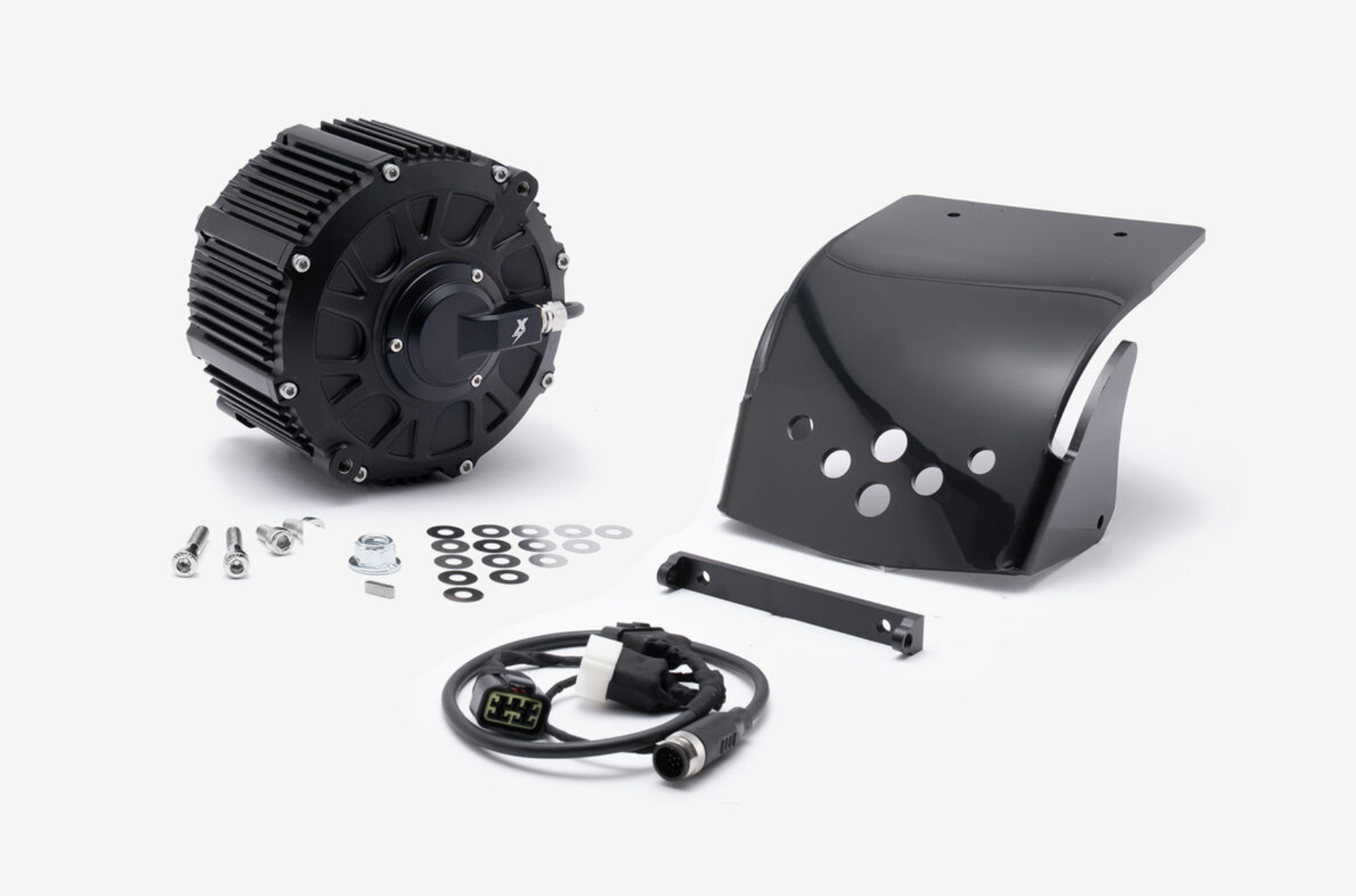

• Custom EBMX Bash Plate Included: Protect your motor and frame with the included bash plate for extra durability.

• Compatible Controllers: Recommended X-9000 settings include:

  • 1000 Phase / 30KW

  • 900 Phase / 25KW

  • 800 Phase / 20KW

Why Choose EBMX XLB-60 Race Motor?

• More Power, More Speed, More Fun, More Savage!

• Built with advanced encoder sensor technology, the XLB-60 provides flawless low-end torque and a smooth powerband, even under the most demanding riding conditions.

• Engineered to withstand the heat, high-speed RPMs, and heavy-duty use, this motor is designed for hardcore racers and adventurous riders seeking the ultimate performance boost.

EBMX XLB-60 Harness Mounts and Fitting Kit for SRLGB

Ensure a seamless installation with the EBMX XLB-60 Harness Mounts and Fitting Kit. This motorcycle wiring loom helps you manage the motor’s electrical system, ensuring all components are connected efficiently and securely. Designed for use with the SurRon Light Bee (SRLGB), the kit simplifies installation and protects your motor’s wiring.

Specifications:

• Purpose: Complete wiring loom for SurRon Light Bee and Eride Pro compatibility.

• Wiring Type: Organizes and protects electrical components, ensuring secure connections throughout the system.

• Protective Sheathing: Wrapped in durable sheathing to prevent wear and tear from intense riding conditions.

• Ease of Installation: Streamlines the setup of your EBMX motor with easy-to-follow connectors and fittings.

With the EBMX XLB-60 Race Motor, you're not just upgrading your ride—you're unleashing an entirely new level of speed, power, and control. Perfect for those who crave intense acceleration, unmatched top speeds, and peak performance, this motor is ready to take on any challenge.
