81v 45ah 40kw+ (diablo spawn)

Sur Ron 81.4V 45Ah Spawn Battery – 40kW Power + Charger

Satanically Powerful. High Voltage. Ballistic Performance.

Meet the Spawn 81.4V 45Ah – a high-voltage monster engineered for riders who demand maximum RPM, explosive torque, and long-distance range. Inspired by its "father" the Diablo, the Spawn delivers nearly identical power performance, but at a more affordable price point – saving you over £500, with only a slight reduction in range.

🔋 Battery Specs:

• Voltage: 81.4V (22s)

• Capacity: 45Ah (3663Wh)

• Standard Power: 220A continuous

• Peak Power: 40kW / 550A (10 sec burst)

• Range: Up to 170km (lab-tested at 25 km/h average)

• Weight: 19.2 kg

• Height: 375mm to lid (excludes handles)

⚙️ Compatibility:

• Fully compatible with:
  EBMX, VTB, Torp, and Nucular Controllers
  (Not compatible with OEM Sur Ron controller)

🔥 Performance:

• High Voltage = Higher RPM

• High Amps = Ballistic Acceleration

• Our parallel discharge system (dual QS8 connectors) spreads the load, reducing resistance and preventing overheating

• 0–100% power with less heat, less firmware throttling, and better gearing options

🧩 Build & Features:

• 21700 High-Discharge Cells (Molicel P45B equivalent – 220 cells)

• Marine Grade 316 Stainless Steel Casing (rust-proof & powder-coated)

• Pure Copper Sheet Connections (no nickel)

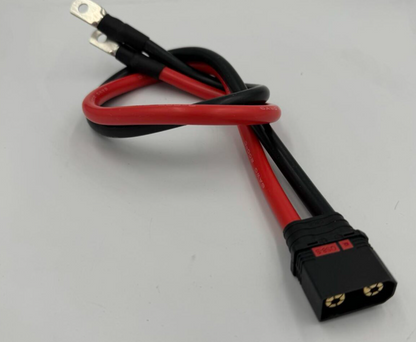

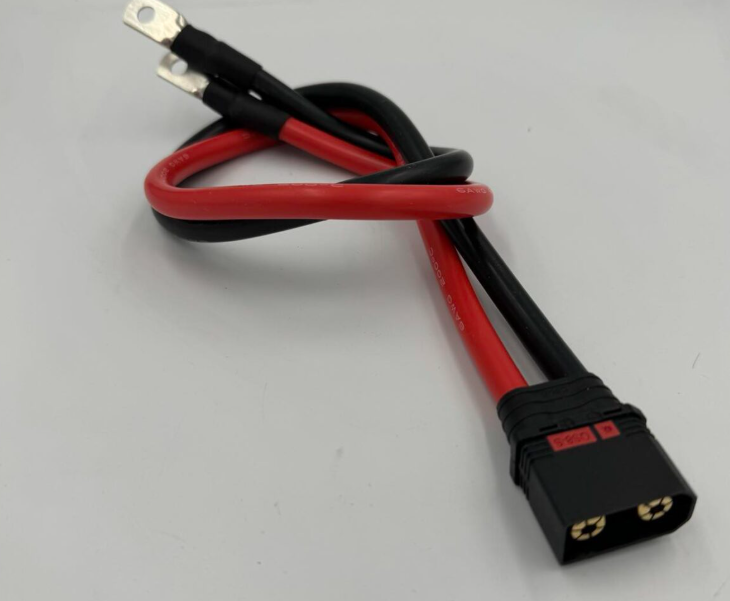

• Dual QS8 Connectors (6AWG + 8AWG wiring for parallel discharge)

• Bluetooth BMS – 220A continuous / 550A burst, with full cell monitoring

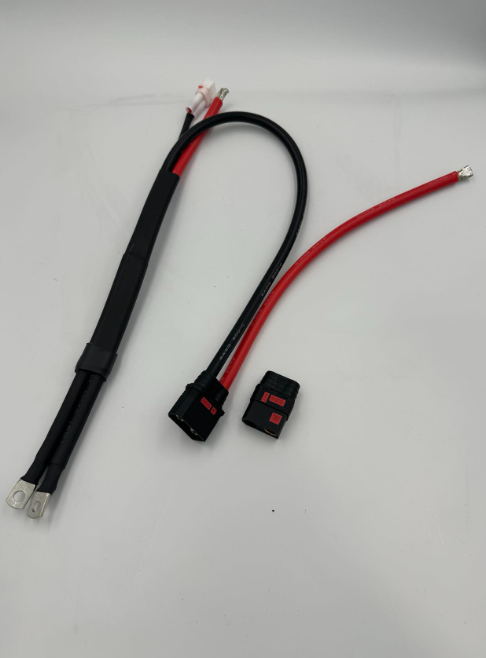

• Free High Power Bike-Side Loom

• XT60 Charging Port

• Integrated Cord Handle for easy handling

• Each cell individually wrapped with added fibre board, Kapton tape & heat shrink for extra safety

• Compatible with Sur Ron & Talaria (adapter included for Talaria users)

⚠️ Installation Notes:

• Battery uses two discharge cables:

  1. One connects to the original bike loom

  2. One direct to the controller (for parallel discharge)

• Connection order matters – full instructions included

• For Torp Controller users, request a 2-into-1 converter at checkout if concerned about direct controller connection:
  Get the adapter here

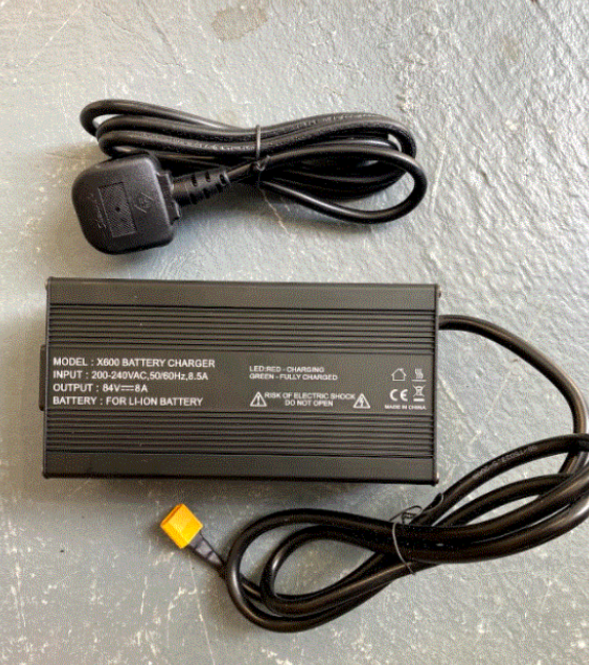

🔌 Charger Included:

• 6A Standard Charger included

• Optional 11A Fast Charger available here:
  Buy the 11A Charger

✅ Key Benefits:

• Extreme Power (40kW) – unmatched acceleration & hill climbing

• Long Range: 3663Wh – 244% more than OEM

• Tough Exoskeleton: built to survive all terrains and weather

• Dual QS8 Discharge for low resistance and cool operation

• UK Warranty & Full Support

📦 What’s Included:

• 1x Sur Ron 81.4V 45Ah Spawn Battery

• 1x 6A Charger

• 1x Free High Power Loom

• 1x Talaria Adapter (if needed)

⚠️ Important Instructions:

• Battery Activation Required on Delivery
  Please contact us to activate your battery once received. This also confirms delivery and warranty registration.

• First-Time Charging is Critical:

  • Always connect the charger to mains first

  • Then plug into the battery

  • Charge for at least 12 hours the first time to balance cells

  • Never charge unsupervised

• Safe Connection Tip:
  Turn off the bike’s red trip switch before connecting the battery. First, connect the original power cable, turn the switch on, then connect the secondary power lead.

📋 Warranty:

• 12-Month Warranty from date of purchase

• 18-Month Cell Warranty (on this model only)

• UK returns fully covered for 6 months

• After 6 months or for international orders, customer covers return shipping

⚠️ Note: Bike and controller not included. This battery will NOT work with the OEM Sur Ron controller.
