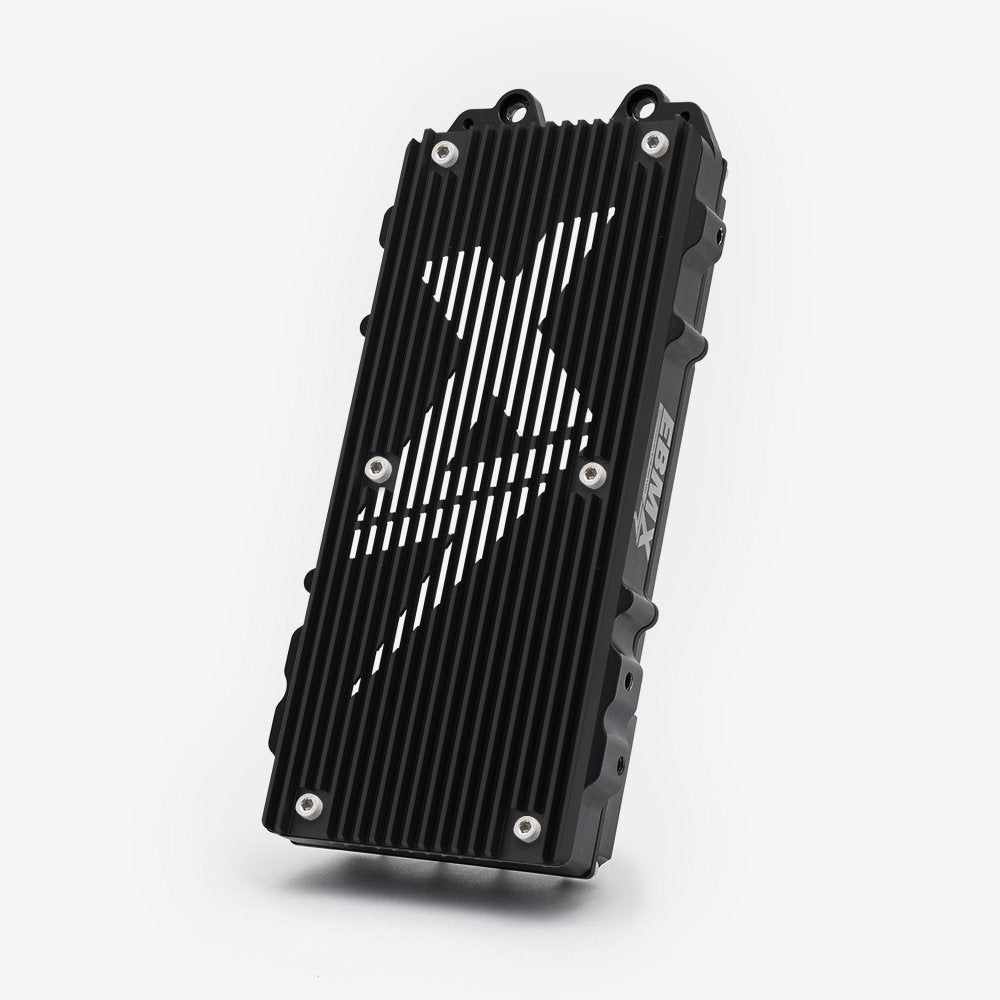

EBMX X-9000 Motor Controller Version 2 for Light Bee
EBMX X-9000 Motor Controller Version 2 for Light Bee
Hurry up! Only 10 items are in stock.
- Free shipping
- Easy Returns
- Reasonable Prices
Couldn't load pickup availability
-
Description
-
Shipping
Description
"Another great product from EBMX"
ENHANCE YOUR ELECTRIC RIDE
The X-9000 Power Kit is compatible with a range of Electric Motorcycles and a range of Motors.
The Kit you purchase from us will contains all the parts needed for an OEM Replacement with the X-9000.
This Kit is a direct bolt in for the SurRon Light Bee with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
EBMX combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller. The X-9000 has been purpose built with dirt bike riders in mind.
Using components sourced from reputable suppliers, each item has been engineered for peak performance, from the CNC machined internals and bus bars, injection molded cover to the fully waterproof construction.
Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 is built to give you ultimate freedom and control.
Custom EBMX App for tuning and full control Available free in the App Store and Google Play Store
Multiple power modes and full adjustment in each mode
Adjustable speed limits for different ride modes
Customizable dashboard to set the display up how you want
Built in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights and other 12v accessories as required and controllable through the app.
Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).
Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67 rated connectors for the harnesses.
SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info
Can be setup with a smart phone for the display or to check info as desired
Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.
Unleash the full potential of your electric dirt bike with the EBMX X-9000 Controller. Engineered for extreme performance and reliability, this controller is packed with features to give you unparalleled control and power on any terrain.
Key Features
-
Massive Power Output: Delivers a continuous 40kW (40,000 watts) of power, with a burst capability of up to 1500A phase current for incredible acceleration and torque.
-
Wide Voltage Compatibility: Operates efficiently within an input voltage range of 40V to 100V, with a working voltage range of 48V to 93V (22S).
-
Superior Efficiency: Boasts a maximum efficiency of over 95%, ensuring more power goes to your motor and less is wasted as heat.
-
Advanced Motor Control: Utilizes Field Oriented Control (FOC) for smooth, precise, and efficient motor operation.
-
Robust Internals: Features 30 highly efficient MOSFETs, extra-beefy CNC machined terminals and connections, and a 12V DC-DC converter with 4 configurable outputs.
-
CANBUS Ready: Easily integrates with other CANBUS-compatible accessories and systems.
-
VESC-Based Firmware: Powered by EBMX's modified VESC-based motor control and firmware for optimized performance.
-
Extreme Durability: Designed to operate in temperatures from -25°C to 80°C and boasts an IP67 waterproof rating, so you can ride with confidence in any conditions.
-
Comprehensive Inclusions: Comes complete with the X-9000 Controller, Air Cooled Heat Sink, SW102 Display, Regen Thumb Throttle, 2-in-1 Harness, and dedicated harnesses for SurRon Light Bee and Talaria MX3/MX4.
-
2-Year Warranty: Ride with peace of mind knowing your investment is protected by a 2-year warranty.

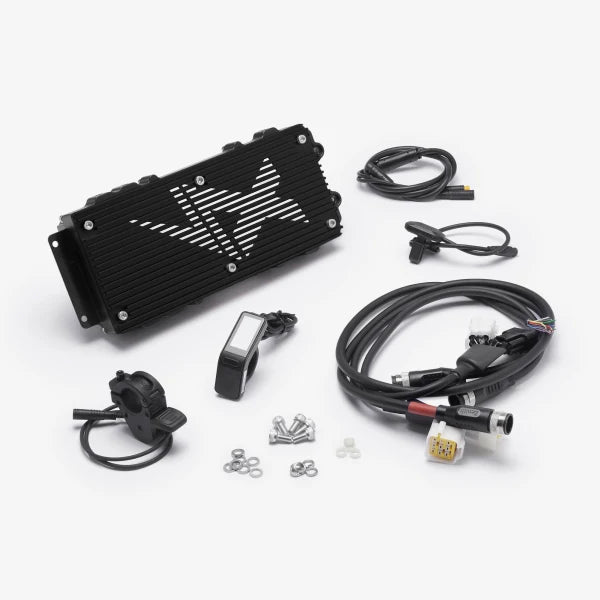

What's Included:
-
X-9000 Controller
-
Air Cooled Heat Sink
-
SW102 Display
-
Regen Thumb Throttle
-
2-1 Harness
-
Harness for SurRon Light Bee
-
Harness for Talaria MX3/MX4
Optional Additions:
Customize your setup further with these optional accessories:
-
Harness and Brackets for SurRon Ultra Bee
-
Harness and Brackets for Talaria XXX
-
Metal Shroud for SurRon Ultra Bee
-
Plastic Shroud for SurRon Light Bee
Heat Sink Colors:
Personalize your look with a choice of heat sink colors:
-
Black
-
Red
-
Blue
-
Gold
-
Purple
-
Other limited edition colors may be available!
Product Specifications:
-
Code: MTRC066
-
PLU: V8297
-
EAN: 5057645725848
-
Rated Power: 40kW (CONTINUOUS)
-
Input Voltage Range: 40V – 100V
-
Working Voltage Range: 48V – 93V (22S)
-
Phase: 1000A (continuous) / 1500A (burst)
-
Max Efficiency: >95%
-
Max Battery Current: 500A
-
Motor Control Protocol: Field Oriented Control
-
Operating Temperature Range: -25°C to 80°C
-
Waterproofing: IP67
-
Warranty: 2 Years
Compatibility
| Manufacturer | Model |
|---|---|
| Surron | Light Bee [SRLGB] |
